Product Description

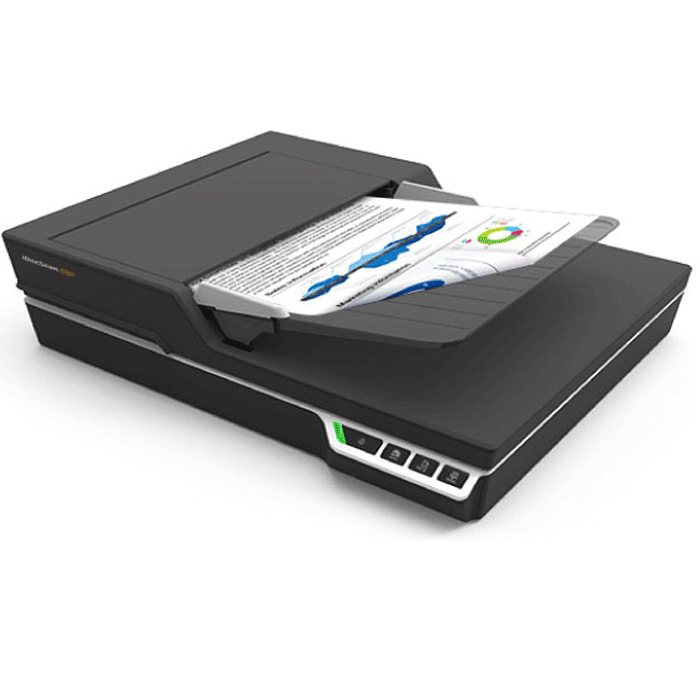

| The D50 is a high reliable document scanner. It has enhancement features such as blank page removal and image deskew, which ensure reliability and productivity in high-volume duplex scanning up to 50ppm/100ipm. An innovative ultrasonic sensor with high detection accuracy helps prevent multi-feed of sheets. Additional flatbed can scan delicate or bound materials up to 1200 dpi optical resolution. |
Specifications |
| ADF (Automatic Document Feeder) | Scan Speed | –50ppm/100ipm (color, 200 dpi, A4, 70 g/m2 ) -50ppm/100ipm (gray, 200 dpi, A4, 70 g/m2 ) -50ppm/100ipm (B&W, 200 dpi, A4, 70 g/m2 ) *Scan speed depends on paper weight, software, computer processor and memory. |
| Capacity | 60 pages at 80 g/m2 (21 lb)*Maximum capacity varies, depending upon paper weight. | |
| Scanning Side | Duplex (double sided) and Simplex (single sided) | |
| Input Tray Width | 9.5″ (242 mm) | |
| Scan Area | -Max. W216mm x L356mm (W8.5” x L14”) -Min. W50mm x 90mm (W2” x L3.5”) | |
| Scan Size | -Auto -A4 (W210mm x L297mm / W8.3” x L11.7”) -A5 (W149mm x L210mm / W5.9” x L8.3”) -B5 (W176mm x L250mm / W6.9”xL9.8”) -Letter (W216mm x L279mm / 8.5” x 11”) -Name Card (W55mm / W2.2”) -Long Sheet (W216mm x L635 mm / W8.5” x L25”) | |
| Paper Thickness & Weight | 30~130g/m² (8 to 34 lb) | |
| Optical Resolution | 600 dpi | |
| Daily Duty Cycle | 3000 sheets | |
| Separation Pad Lifetime | 30000 Scans | |
| Flatbed | Scan Speed | approx. 5 sec per page (Color, 300 dpi, A4) |
| Scan Size | -Auto -A4 (W210mm x L297mm / W8.3” x L11.7”) -A5 (W149mm x L210mm / W5.9” x L8.3”) -B5 (W176mm x L250mm / W6.9”xL9.8”) -Letter (W216mm x L279mm / W8.5” x L11”) | |
| Optical Resolution | 100 dpi – 600 dpi; Maximum 1200 dpi for TWAIN & iDocScan Program |
| Power Saving | Auto power off after 15min |
| Compatibility | TWAIN Compliant (for Windows XP / Vista / 7 / 8 / 8.1) WIA Compliant (for Windows 7 / 8 / 8.1 only) ISIS (option) |
| Dimension | L430 mm x W334 mm x D100 mm (L16.9” x W13.15” x D3.94”) |
| Weight | 4.5 kgs (9.92lbs) |
| Power Supply | 12V/2A (Input : 100V ~ 240V, 50/60Hz) |
| Operation Temperature | 10 °C – 35 °C (59 °F – 95 °F) |
For driver support CLICK HERE
