A3F1200N

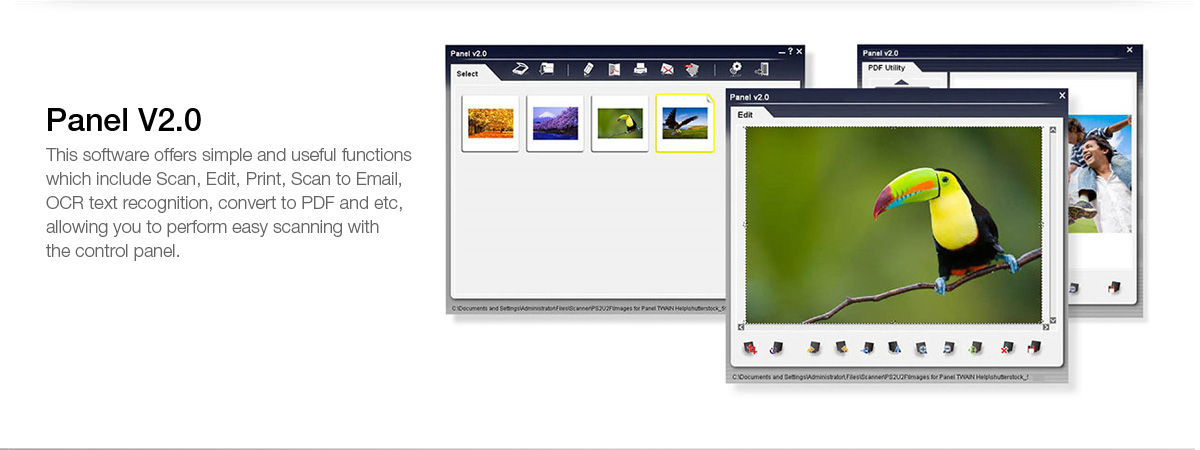

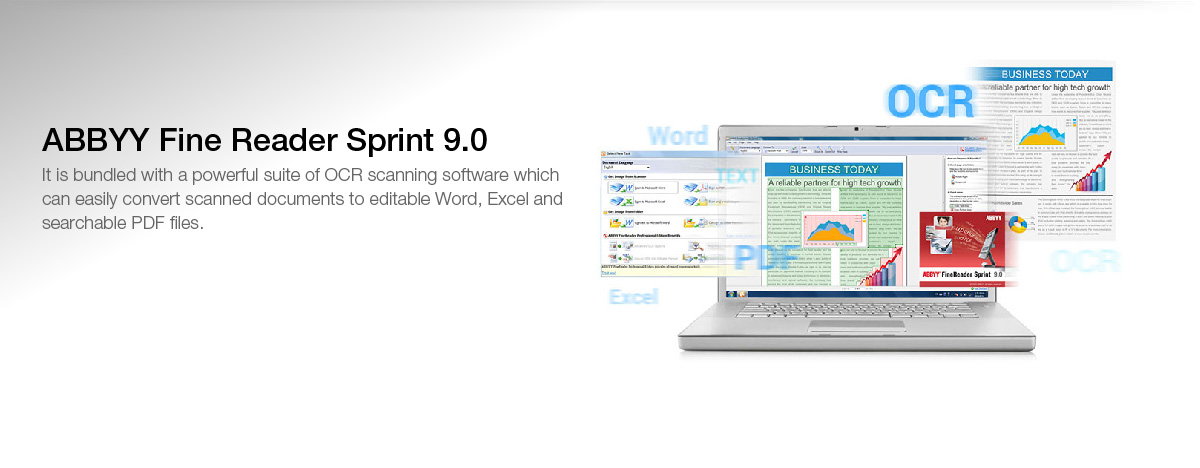

High Speed Flatbed ScannerA3F1200N features easy touch buttons for Scan, PDF, and Panel settings. The large A3 size flatbed coupled with an expandable lid makes it easy to scan thick bound books and large documents. It offers high quality 1200 dpi optical resolution with true 48-bit color scanning. The bundled software allows to scan, fax, email documents, and create a PDF or text file (OCR) easily.
|  |
Features
Specifications
| Image Scanner Type | Color CIS (Contact Image Sensor) |
| Scanner Buttons | POWER, SCAN, PDF, PANEL |
| Scan Modes | Color: 48-bit & 24-bit Gray: 16-bit & 8-bit Line art: 1-bit |
| Scan Area (Max.) | 297 mm x 420 mm (11.7″ x 16.5″) |
| Scan Speed / A3 (H/W Speed) | color (200dpi): 3 seconds color (300dpi): 3.5 seconds |
| Resolution | Optical: 1200dpi x 1200dpi Software Interpolation: 9600 dpi x 9600 dpi |
| Scanning Speed | 3.2 sec (100dpi, A3-size color) 3.2 sec (200dpi, A3-size color) 3.5 sec (300dpi, A3-size color) 22.6 sec (600dpi, A3-size color) |
| Recommended Daily Volume | Approx. 2500 pages |
| Interface | USB2.0 |
| Light Source | LED |
| Dimension (L x W x H) | 576 mm x 406 mm x 72 mm (22.6″ x 15.9″ x 2.8″) |
| Weight | Approx. 4.6 kgs (10.1 lbs) |
| Power Consumption | 12 VDC, 2.0A, 24W ( Input: 100~120VAC or 200~240VAC, 50~60Hz) |
| Power Saving | ENERGY STAR® |
| System Requirements | Windows 10 / 8 / 7 / Vista / XP (Service Pack 3) Mac OS X 10.7~10.11 Linux (Option) |
